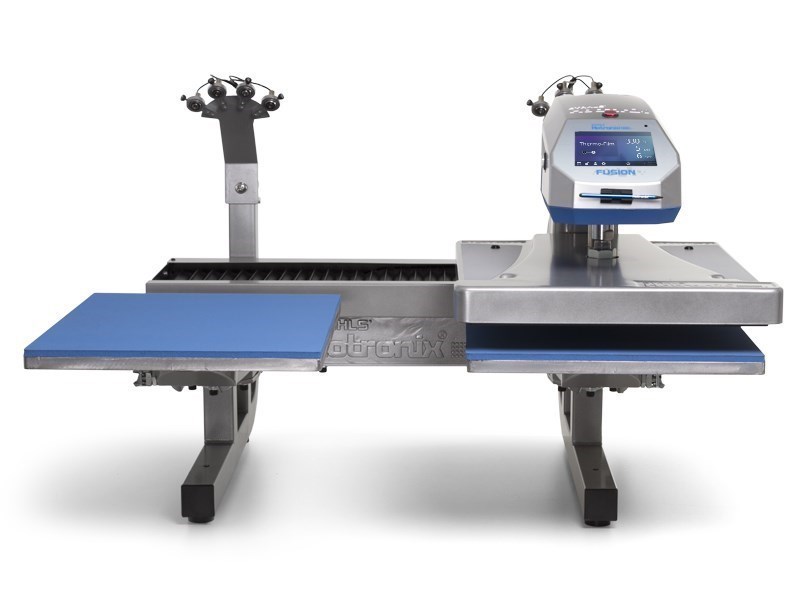

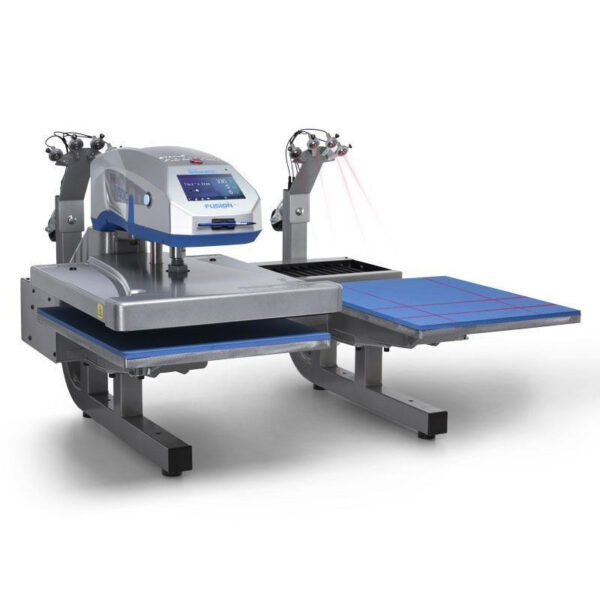

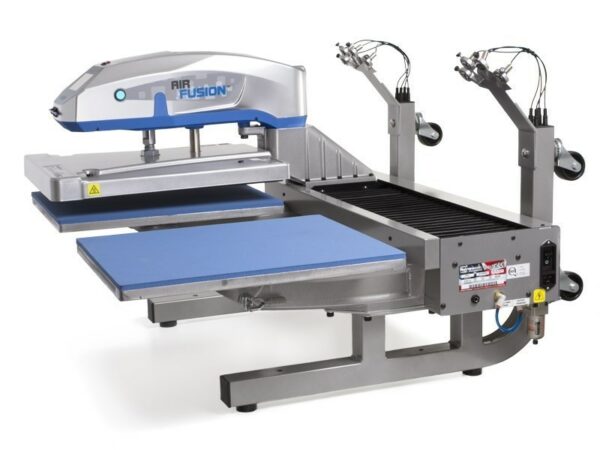

Hotronix® Dual Air FUSION IQ® Heat Press

$8,150.00

With two heat printing stations, the Dual Air Fusion IQ heat press increases efficiency by allowing threading and layout on one station while the other is being pressed. It’s perfect for high-volume operations and for DTG printing – set one station for pre-treatment, the other for post-curing.

OVERVIEW

Specifications

Extras

Videos

Request Info

More production, increased efficiency.

With two heat printing stations, the Dual Air Fusion IQ heat press increases efficiency by allowing threading and layout on one station while the other is being pressed. It’s perfect for high-volume operations and for DTG printing – set one station for pre-treatment, the other for post-curing.

  • New Fusion IQ™ controller with larger, higher-resolution screen, plus troubleshooting and self-diagnostic capabilities
  • Generate performance reports and manage users online with the new Hotronix Online Portal
  • Program each station to work independently or in unison with Position-Based Recipe printing
  • Ensure accurate and consistent layout with the included Laser Alignment System
  • Dual Quick Change 16″ 20″ lower platens (additional platens available separately)
  • Full Threadability™ on lower platens: position the garment, rotate, and decorate any area
  • Auto Adjust Pressure™: Set four different time and pressure settings that adjust automatically for your recipe
  • Digital time, temperature, and pressure readouts
  • Operates in full-auto, semi-auto, or manual modes
  • Smooth, quiet rodless transmission
  • Touchscreen stores frequently used settings, production cycle counter, and auto on/off capability
  • 120 PSI for heavy-pressure application
  • Die pressure cast, corrosion-free base and assemblies
  • Requires air compressor (not included) with minimum 1 horsepower and 8-gallon hold tank. Uses 2.6 CFM
  • Must have dedicated circuit breaker
  • Proudly made in the USA

      With two heat printing stations, the Dual Air Fusion IQ heat press increases efficiency by allowing threading and layout on one station while the other is being pressed. It’s perfect for high-volume operations and for DTG printing – set one station for pre-treatment, the other for post-curing.

      Specifications

      Get to know the equipment.

      Country Made In USA
      Heating Type Cast-in Tubular
      Finish Powder Coating
      Frame Cast Aluminum Alloy
      Dimensions 45.5″ x 45.5″ x 33.5″
      Platen Size Optional
      Power Options 240 v; 15 amps; 3500 w
      Actual Weight 260 lbs
      Shipping Weight 500 lbs
      Warranty Heating Element – Lifetime
      Framework – 5 years
      Circuit Board – 2 years
      Parts & Labor – 1 year

      Downloadable Resources

      Hotronix® Dual Air FUSION IQ® Heat Press

      Accessories & Supplies

      Need to upgrade or add on some extra supplies? No problem.
      Below is a list of accessories and supplies that are compatible with this equipment.

      Ink

      Part No. Description Price
      STS.DTF.220ML DTF Ink Cartridge 220ml for CMYK

      $40.00

      STS.DTF.1L

      DTF Ink 1 Liter Pouch CMYK & White

      $41.50

      Consumables

      Part No. Description Price
      STS.DTF.TF

      DTF Transfer Film from STS

      $55.00

      STS.DTF.WP

      TPU White Powder From STS

      $60.00

      Additional Equipment

      Part No. Description Price
      STS.TPU.PS

      The Auto TPU Powder Shaker

      $8,970.00

      STS.CO

      STS Transfer Film Curing Oven

      $620.00
