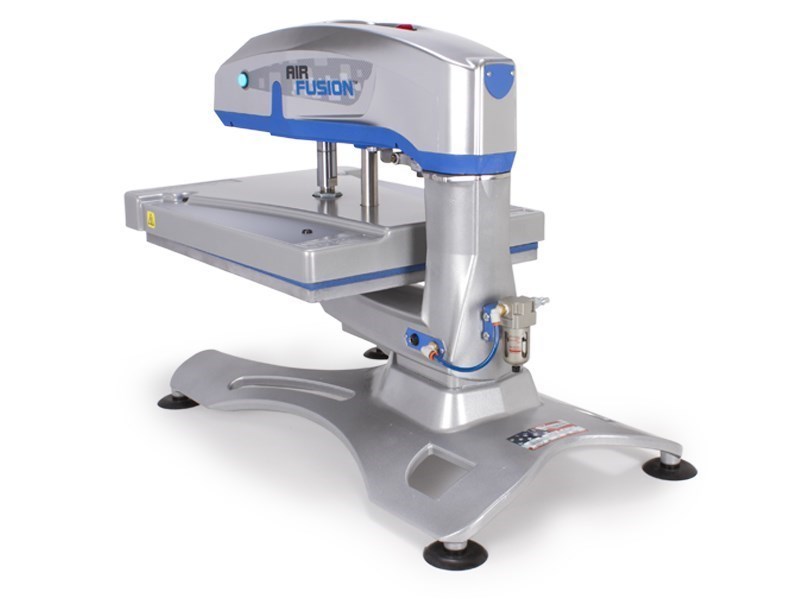

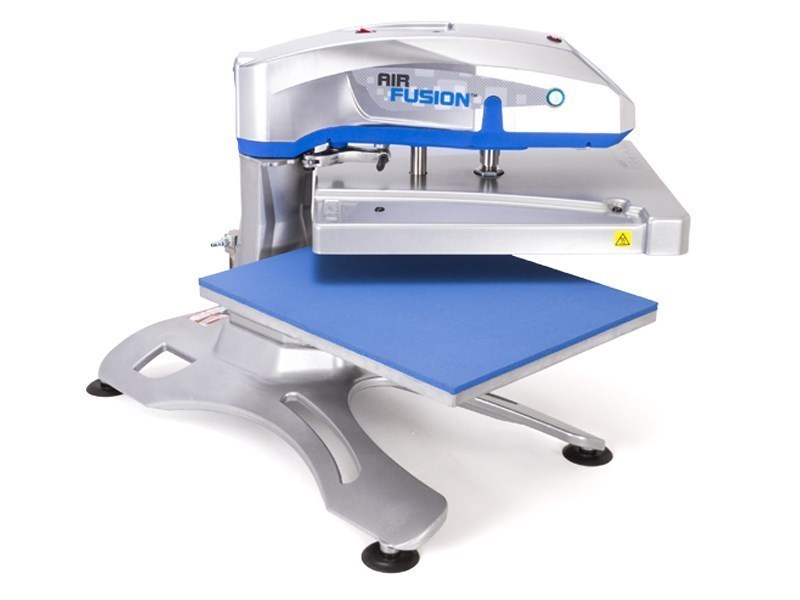

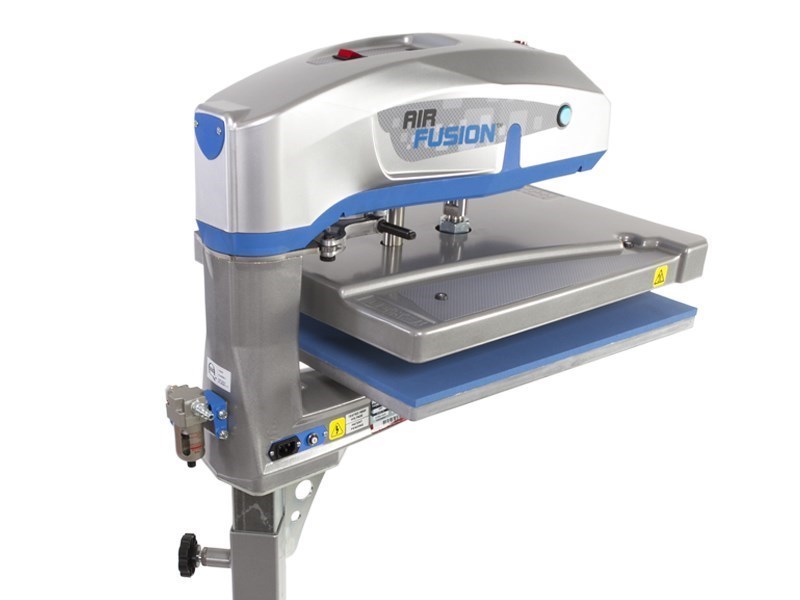

Hotronix® Air Fusion IQ® Heat Press

$5,150.00

Perfect for high-volume shops, specialty decorators, and Direct-to-Garment printing, the air-powered Air Fusion IQ heat press features a 16″ x 20″ heated upper platen and swing motion, for a heat-free workspace. Available in tabletop or adjustable-height pedestal stand models.

OVERVIEW

Specifications

Extras

Videos

Request Info

Smarter Air-Powered Technology. Faster Production.

Perfect for high-volume shops, specialty decorators, and Direct-to-Garment printing, the air-powered Air Fusion IQ heat press features a 16″ x 20″ heated upper platen and swing motion, for a heat-free workspace. Available in tabletop or adjustable-height pedestal stand models.

  • New Fusion IQ™ controller features troubleshooting and self-diagnostic capabilities
  • Track performance and print productivity reports from anywhere with the new Hotronix Online Portal
  • New larger, higher resolution screen with improved touchscreen response
  • Exclusive Auto-Adjust Pressure™ automatically adjusts to the thickness of the item being printed
  • Full Threadability™ on the lower platen: position the garment, rotate, and decorate any area
  • Auto open, auto swing design, with a foot pedal reduces fatigue
  • Swing motion allows for a heat-free workspace
  • Touchscreen stores frequently used settings, production cycle counter, and auto on/off capability
  • Data interface port allows for future software upgrades
  • User-safe two-hand push-button operation
  • 120 PSI for high-pressure applications
  • Optional quick-change platens; no tools required
  • Program up to four different pressure and time settings
  • Die pressure cast 365 aluminum corrosion-free framework
  • Requires air compressor (not included) with minimum ½ horsepower and 2-gallon hold tank. Uses 2.3 CFM
  • Must have dedicated circuit breaker

    Perfect for high-volume shops, specialty decorators, and Direct-to-Garment printing, the air-powered Air Fusion IQ heat press features a 16″ x 20″ heated upper platen and swing motion, for a heat-free workspace. Available in tabletop or adjustable-height pedestal stand models.

    Specifications

    Get to know the equipment.

    Country Made In USA
    Heating Type Cast-in Tubular
    Finish Powder Coating
    Frame Cast Aluminum Alloy
    Dimensions 48″ x 40″ x 58″
    Platen Size Optional
    Power Options 120 v; 15 amps; 1800 w
    240 v; 15 amps; 1800 w
    Actual Weight 150 lbs
    Shipping Weight 150 lbs
    Warranty Heating Element – Lifetime
    Framework – 5 years
    Circuit Board – 2 years
    Parts & Labor – 1 year

    Downloadable Resources

    Hotronix® Air Fusion IQ® Heat Press Info

    Accessories & Supplies

    Need to upgrade or add on some extra supplies? No problem.
    Below is a list of accessories and supplies that are compatible with this equipment.

    Ink

    Part No. Description Price
    STS.DTF.220ML DTF Ink Cartridge 220ml for CMYK

    $40.00

    STS.DTF.1L

    DTF Ink 1 Liter Pouch CMYK & White

    $41.50

    Consumables

    Part No. Description Price
    STS.DTF.TF

    DTF Transfer Film from STS

    $55.00

    STS.DTF.WP

    TPU White Powder From STS

    $60.00

    Additional Equipment

    Part No. Description Price
    STS.TPU.PS

    The Auto TPU Powder Shaker

    $8,970.00

    STS.CO

    STS Transfer Film Curing Oven

    $620.00
