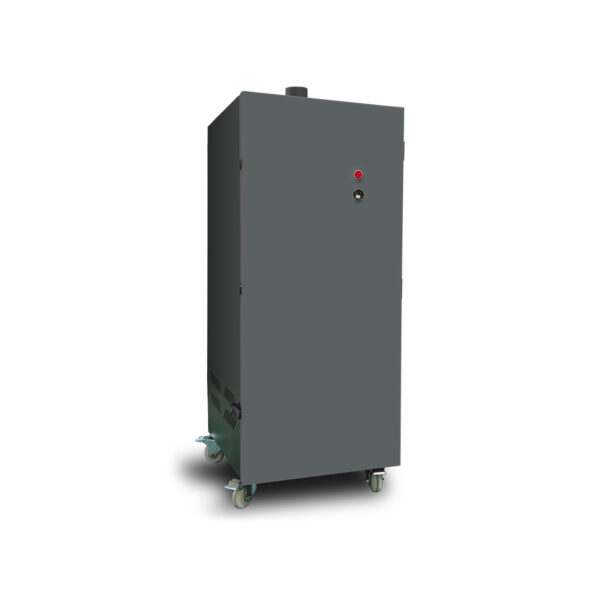

DTF2U 250W Industrial Filtration/Fume Extractor


DTF2U JS100 smoke lampblack filter is designed for the machine need smoke discharge like dtf shaker or sublimation color system. It can be matched with various powder shakers and sublimation color fixing machines to complete the extraction and filtration of oil fume.Effectively eliminate and filter the oil fume in the drying process, improve the quality of processed products, and provide a clean and smoke-free working environment.


Rated Voltage AC 110V ± 5%
Rated Current 2.5A
Rated Power 250W
Energy consumption 150~250W
Max air amount 250m³/h
Noise ≤ 65db
Machine Size 20.9in x 22.5in x 53.8in (530mm x 571mm x 1366mm)
Machine Weight 198lbs (90kg)
Package Size 26.8in x 24.8in x 60.6in (680mm x 630mm x 1540mm)
Gross Weight 264lbs (120kg)
Warranty 1 year

Package Includes

• 1 x Fume Extractor
• 2 x Extraction pipes
• 1 x Activated carbon filter (Installed in the machine)
• 1 x Power cord
• 1 x Filter element (Installed in the machine)
• 1 set screws
• 1 x User manual

Note: In order to achieve better smoke removal effect, it is recommended that the activated carbon be replaced every 3months and the filter element be replaced every 6 months. Drain the oil at the drain port once every 3 days.


High effect filter: This smoke extractor continuously pulls in your dtf powder shaker’s fumes and oil, running them progressively through its filter element and inner activated carbon filters to absorb all harmful gases and unpleasant odors.

Highly mobile: The 4 quality caster wheels move this small but dependable smoke purifier easily between your devices when needed and then lock smartly in place once you’re ready to go.

Independent design: Open it you can use it.

Adopts the full-scale design, inner oil gas, smoke room are large, have good filter effect.

Can satisfy DTF powder shaker or sublimation color system’s filter requirement.
